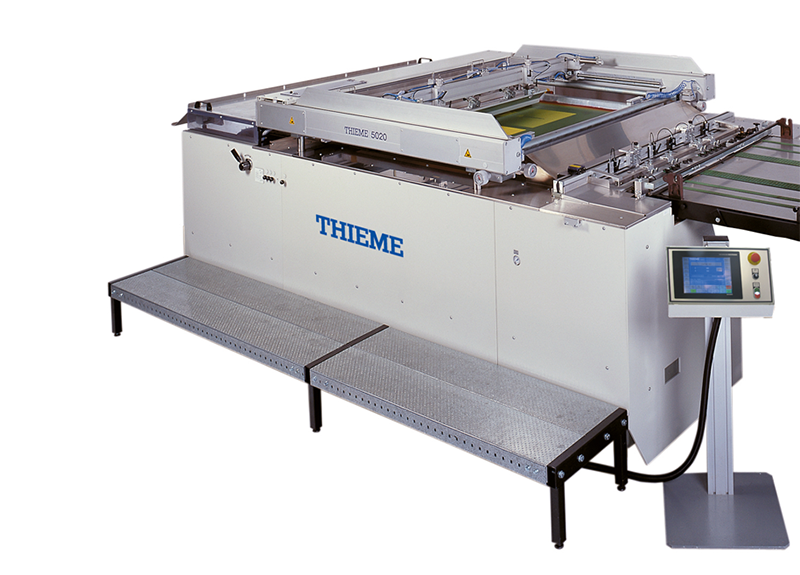

Thieme 5000

Fully automatic screen printing system with rotary grippers.

Be the first to review this product

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Fully automatic screen printing system with rotary grippers. Precision built, short set-up times. Absolute reliability for multi-shift operation. High precision and speed through servo drive motors.

Maximum volume output, also for different formats and materials
Short set-up times
High precision and speed through servo driving force
Machine job data storage memory
Complete machine programmable

Why THIEME 5000?

Fully automatic with manual loading opportunity

High flexibility of the substrates from 0.1 to 6 mm
Short setup times by tool-free setting
Fast Investment amortization due to low staffing
Highest Productivity
Absolute reliability in multi-shift operation
Thieme-Quality „Made in Germany“

Specifics

Material handling by circulating gripper system
Automatic sheet positioning
Precision and speed through servo drive technology
Printing parameters stored for recurring print jobs
Exceptional print results from THIEME designed table and original THIEME Squeegee Unit
Loading / unloading on pallets
Durable machine concept, usable as a ¾ auto- machine
Individual selection of a machine options based on customer requirements
Extensive Feeder options (single sheet, scale, leading / trailing edge)

SKU: Thieme 5000

Fully automatic screen printing system with rotary grippers. Precision built, short set-up times. Absolute reliability for multi-shift operation. High precision and speed through servo drive motors.

Maximum volume output, also for different formats and materials
Short set-up times
High precision and speed through servo driving force
Machine job data storage memory
Complete machine programmable

Why THIEME 5000?

Fully automatic with manual loading opportunity

High flexibility of the substrates from 0.1 to 6 mm
Short setup times by tool-free setting
Fast Investment amortization due to low staffing
Highest Productivity
Absolute reliability in multi-shift operation
Thieme-Quality „Made in Germany“

Specifics

Material handling by circulating gripper system
Automatic sheet positioning
Precision and speed through servo drive technology
Printing parameters stored for recurring print jobs
Exceptional print results from THIEME designed table and original THIEME Squeegee Unit
Loading / unloading on pallets
Durable machine concept, usable as a ¾ auto- machine
Individual selection of a machine options based on customer requirements
Extensive Feeder options (single sheet, scale, leading / trailing edge)

Posters, banners
Signage
Cartonboxes
Wallpapers
Special applications
POP/POS displays

This product is sold out

Products specifications

Attribute name	Attribute value
Model	Thieme 5000
Media handling	3/4 automatic
Print format	750 x 1050mm (Thieme 5020) \| 1000 x 1400mm (Thieme 5030) \| 1200 x 1600mm (Thieme 5040) \| 1400 x 1800mm (Thieme 5050) \| 1550 x 2100mm (Thieme 5060) \| 1600 x 2600mm (Thieme 5070)
Sheet format	800 x 1100mm (Thieme 5020) \| 1050 x 1450mm (Thieme 5030) \| 1250 x 1650mm (Thieme 5040) \| 1450 x 1850mm (Thieme 5050) \| 1600 x 2150mm (Thieme 5060) \| 1660 x 2660mm (Thieme 5070)
Screen format	1200 x 1400mm (Thieme 5020) \| 1450 x 1750mm (Thieme 5030) \| 1700 x 2000mm (Thieme 5040) \| 1900 x 2200mm (Thieme 5050) \| 2055 x 2500mm (Thieme 5060) \| 2200 x 3200mm (Thieme 5070)
Speed	Κατά παραγγελία
Squeegee speed	0,3-1,5m/sec
Media thickness	0,1-6mm
Roll weight	120-3000gsm
Dimensions (W x D x H)	Εξωτερικές διαστάσεις τραπεζιού: 869 x 1214mm (Thieme 5020) \| 1098 x 1564mm (Thieme 5030) \| 1288 x 1814mm (Thieme 5040) \| 1479 x 2014mm (Thieme 5050) \| 1669 x 2314mm (Thieme 5060) \| 1779 x 2814mm (Thieme 5070)
Power requirements	230/60, 400/50 (V)
Operating environment	Θερμοκρασία -20 έως +50°C. Σχετική υγρασία 30 έως 75%. Πίεση αέρα 700 έως 1060 hPa
Optional equipment	Optic feeding controls, anti-drip unit, vision system (2 independent camera systems for automatic screen positioning and substrate alignment)
