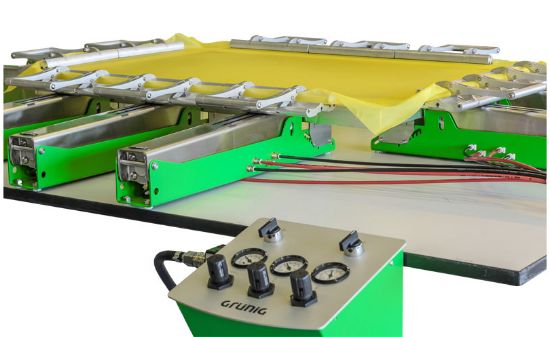

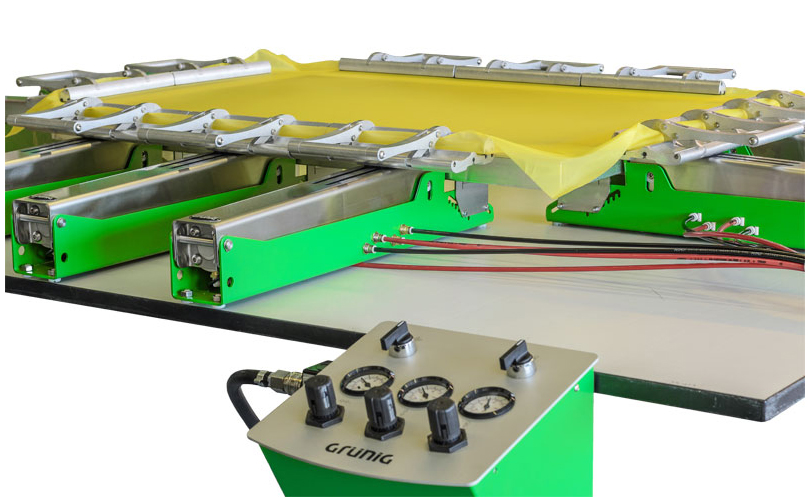

G-Stretch 202 Plus

Stretching Device

Be the first to review this product

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Quick facts

A cost-efficient first step into professional stretching
Pneumatic stretching with highest precision/reproducibility
Pneumatic two-circuit control panel
The stretching process takes place without frame contact
Pneumatic mesh lowering after stretching
Modular extension possible in 155mm and 250 mm (6 / 10 inch) increments
Stretching stroke per clamp is 125 mm (totally 250 mm per axis)
Automatic pre-bowing of the screen frames
Simple adjustment of the frame profile height
DUPLEX clamps offering max. retention force

SKU: G-Stretch 202 Plus

Quick facts

A cost-efficient first step into professional stretching
Pneumatic stretching with highest precision/reproducibility
Pneumatic two-circuit control panel
The stretching process takes place without frame contact
Pneumatic mesh lowering after stretching
Modular extension possible in 155mm and 250 mm (6 / 10 inch) increments
Stretching stroke per clamp is 125 mm (totally 250 mm per axis)
Automatic pre-bowing of the screen frames
Simple adjustment of the frame profile height
DUPLEX clamps offering max. retention force

There is no further information

Products specifications

Attribute name	Attribute value
Models	G-Stretch 202 Plus
Model dimensions	Μονή δαγκάνα: Μήκος 580mm / Πλάτος 155/250 mm
Weight	Μονή δαγκάνα: 7,8kg
Frame profile thickness	20-50 mm
Clamp travel distance	125 mm
Maximum mesh tension	60 N
Control desk	(WxDxH): 330 x 245 x 220 mm
Air requirements	Pressure: 9 Bar / Consumption per clamp: 0,25 l/stroke
Permanent sound pressure level	<70 dB (A)
