Ημιαυτόματο, επίπεδο μηχάνημα μεταξοτυπίας με συρταρωτό τραπέζι για εύκαμπτα και άκαμπτα υλικά

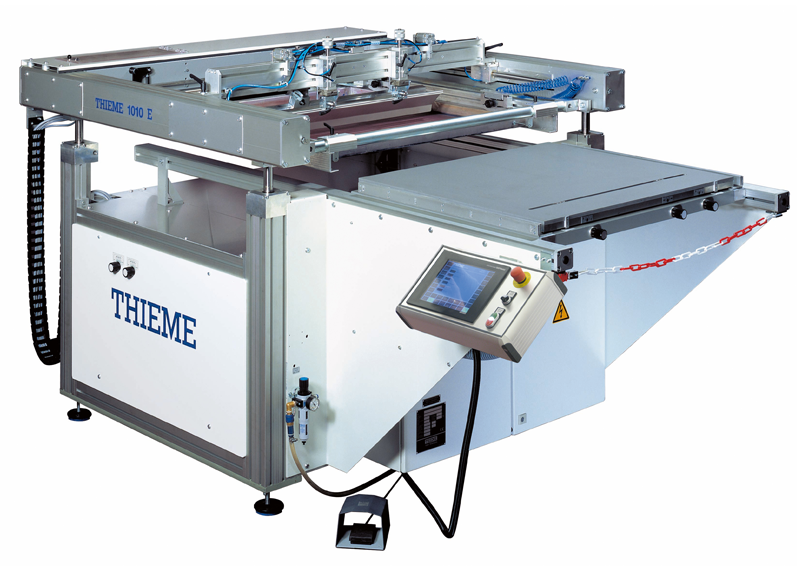

Thieme 1000 E
Semi-automatic, flat screen printing machine with sliding table for flexible and rigid materials
Basic construction
Assembled frame consisting of individual parts
- Frame parts are anodized
- Lining is painted gray 0742
Printing table
Triple-layer anodized aluminum construction
- Designed with a slot in the front of the table, including 2 movable adjustment unit guides, each with a guide (diameter according to customer requirements)
- The table is moved via a crank for smooth start and deceleration
- Vibration-free table guide, which moves on durable guide rails
- Mechanical repeatability of the print table positioning +/- 0.02
- Polyester sheet frame for print test
- Micro-adjustment of the print table in 3 axes with 3 individual micro-axes, adjustment range +/- 10 mm.
Vacuum System
Silent, vibration-free side channel condenser
- Electro-pneumatic valve
- Retention meter for the pre-vacuum period and automatic air release, programmable
- Vacuum and air release infinitely adjustable
- Vacuum area with 1.5 mm diameter perforations, arranged every 15 mm on the center
Thieme printing spatula
Pneumatic reversal from printing spatula to spreading spatula and vice versa
- Programmable pneumatic pressure of the printing spatula with automatic parallel position adjustment and integrated pressure reducer
- Infinitely variable angle adjustment of the printing spatula and spreading spatula via crank
- Squeegee guidance on linear ball bearings that run on a rigid ground axis
- Adjustable diagonal position of the printing spatula
- Quick-release device for stretching the printing spatula
- Printing spatula set for maximum printing area
Printing spatula movement
The printing spatula is driven by a three-phase, frequency-controlled gear motor and toothed belts, with a speed of 0.05 to 0.6 meters/second or 0.15 to 1.0 meters/second
- The speeds of the printing spatula and the spreading spatula are infinitely adjustable
- Closed, maintenance-free, printing spatula carrier steering system
- Infinitely programmable printing spatula travel (front and rear end positions)
Telaros Management System
Compact base frame construction
- Insertion of the surface to be printed from the front
- Fast and safe pneumatic clamping of the frame and base frame
- Three-point pneumatic adjustment for precise frame adjustment (maximum frame dimension must be used)
Frame lifting system and shutdown
Infinitely adjustable frame lifting height from 0 to 4 mm over 200 mm of printing spatula stroke
- Infinitely adjustable screen printing lifting starting point over the entire length of the spatula stroke
- Infinitely adjustable clearance
- A distance of 0.5 to 20 mm can be set between the surface of the printing table and the bottom of the screen printing.
Control Panel
PLC control panel
- Separate operating console
- Keyboard with display
- Foot pedal
- Programmable parameters
- Memory for 30 different complete machine settings
- Nominal value for the mechanical parameters of the machine
- Digital counter for quantity, operating hours, preset
- Digital display of the operating status
- Status of service needs
- Switch for manual single-cycle operation and automatic operation
Additional accessories
Drip-preventing device in the printing and spreading spatula system
- Transparent cover
- Additional grooves in the printing table
- Additional holding devices
- Additional holding devices with adjustment guide (diameter according to customer requirement)
- TEKNEK cleaning unit
- WANDRESS cleaning unit
- Pneumatic adjustment or ejection guides
