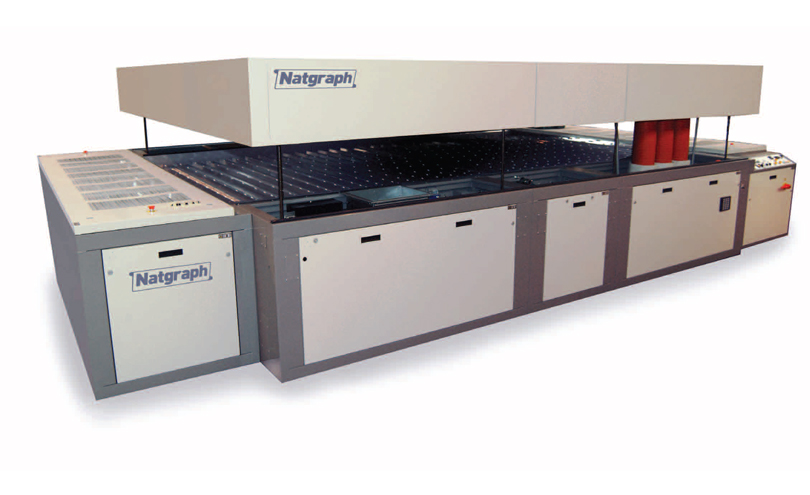

Στεγνωτήρια γυαλιού αέρος - υπέρυθρων

Τα στεγνωτήρια γυαλιού Air Force IR έχουν σχεδιαστεί ειδικά για υδατοχρώματα και έλαια πεύκου που στεγνώνουν αργά.

Γίνε ο πρώτος που θα αξιολόγησει αυτό το προϊόν

€0,00

Αποστολή σε

Τρόπος αποστολής

Όνομα

Εκτιμώμενη ημερομηνία παράδοσης

Τιμή

Δεν υπάρχουν μέθοδοι αποστολής

Air Force IR glass dryers are specifically designed for slow-drying watercolours and pine oils. They use a combination of infrared radiation with hot air and/or cold air supplied from the top and bottom.

These systems dry inks and coatings on glass products with a thickness of 0.6mm to 24mm and a maximum width of 3m, with applications in the automotive industry, architecture, household appliances, solar panels, electronic panels, furniture and decoration, etc.

With 5 standard belt widths (70cm to 260cm), PLC control system with touch screen, 4 versions with modular design, hot air/infrared combination, double-sided cooling, special transport systems, this series of dryers is extremely flexible and efficient.

Features:

PLC control system with touch screen
High operating temperature, optionally up to 200°C
16 medium wave IR lamps per 2m section
High-performance stainless steel mirrors
With lifting arms of the upper part of the system
Modular construction
Conveyor systems with perforated steel or fibre glass belt with PTFE coating
Casters, with height and alignment adjusters
With color selection according to industry standards
Optional recirculation filters
Optional air inlet filter
Optional thyristor control

Optionally:

Input filter

A filter can be optionally added to each air inlet to clean the air from dirt and dust. This is a self-contained, easily replaceable unit, is EU4 (4 microns) and is designed to ensure sufficient air flow to the dryer, while preventing pollution.

Thyristor drivers

A thyristor driver can be optionally added to control the IR radiation of the lamps on a percentage basis and is particularly useful in cases where the effect of IR radiation is critical or unknown. The driver is digitally controlled by the PLC system.

Inverter Drives for motorized fans

An optional DC-AC inverter is available to control the air velocity on the glass surface. A useful addition for very thin glass or when the dryer needs to be used for metallic inks that require high air velocities, while it normally handles thicker conventional ceramic inks.

SKU: Air Force IR Glass

Features:

PLC control system with touch screen
High operating temperature, optionally up to 200°C
16 medium wave IR lamps per 2m section
High-performance stainless steel mirrors
With lifting arms of the upper part of the system
Modular construction
Conveyor systems with perforated steel or fibre glass belt with PTFE coating
Casters, with height and alignment adjusters
With color selection according to industry standards
Optional recirculation filters
Optional air inlet filter
Optional thyristor control

Optionally:

Input filter

Thyristor drivers

Inverter Drives for motorized fans
