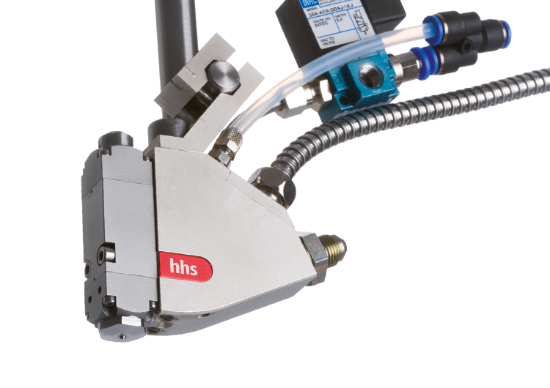

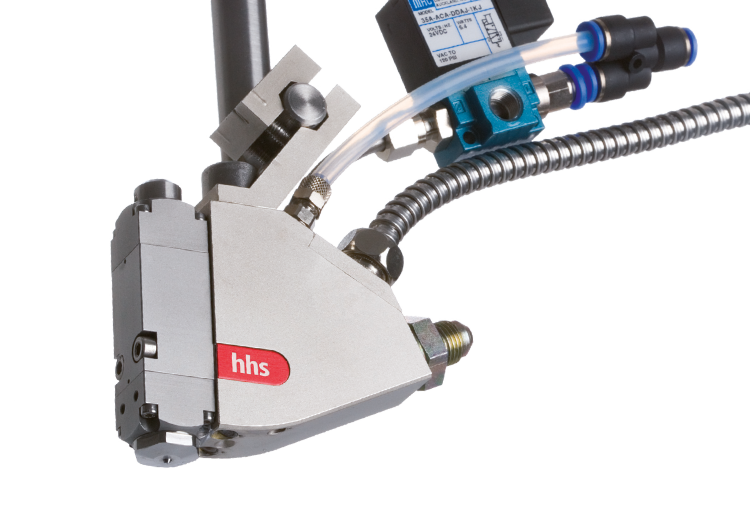

Xmelt Electropneumatic application head - HM 500

Xmelt Electropneumatic application head - HM 500
Be the first to review this product
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

HM 500

The universal head with power. With the HM-500, Baumer hhs provides an extremely powerful and flexible application head. The HM-500 is suitable for a wide range of applications in many industries.

  • Special designs available
  • Maximum flexibility
  • Maximum flexibility in adhesive selection
  • For dot and line application
SKU: Xmelt Electropneumatic application head - HM 500

Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

HM 500

The universal head with power. With the HM-500, Baumer hhs provides an extremely powerful and flexible application head. The HM-500 is suitable for a wide range of applications in many industries.

  • Special designs available
  • Maximum flexibility
  • Maximum flexibility in adhesive selection
  • For dot and line application

There is no further information

Products specifications
Attribute name Attribute value
Model Xmelt HM 500
Temperature range 0 - 200 °C
Temperature sensor PT 100
Switching frequency 150 Hz (depending on nozzle size, adhesive and pressure)
Connection 15 pole plug
Hose connections 1/2” UNF
Material pressure 80 bar (adhesive pressure)
Viscosity 60.000 mPas (max.)
Noise emission 70 dB
