Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

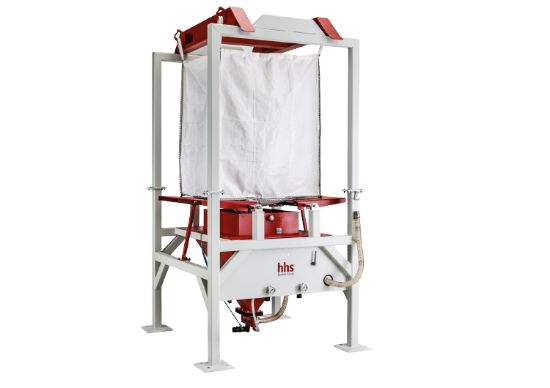

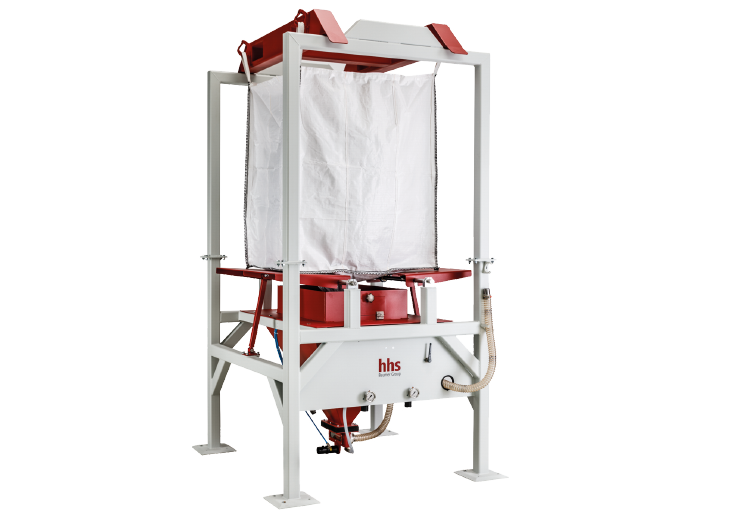

Xfeed big bag station

Adhesive supply for large production plants. You want to supply several packaging machines in your production with adhesive? Then the big bag station is exactly the right concept. With a capacity of 1t, you can be sure that all lines are always supplied with the right amount of adhesive.

  • No adhesive granules in production
  • Maximum cleanliness
  • Highest process reliability
SKU: Xmelt Central adhesive supply Xfeed big bag station

Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

Xfeed big bag station

Adhesive supply for large production plants. You want to supply several packaging machines in your production with adhesive? Then the big bag station is exactly the right concept. With a capacity of 1t, you can be sure that all lines are always supplied with the right amount of adhesive.

  • No adhesive granules in production
  • Maximum cleanliness
  • Highest process reliability

There is no further information

Products specifications
Attribute name Attribute value
Model Xmelt Xfeed big bag station
Tank capacity 1000 kg
Power consumption 32 W
Weight 641 kg
Ambient temperature 5 - 40 °C (depends on adhesive)
Protection class 54 IP
Hose connections Ø-inner 40mm, Ø-outer 50mm (delivery hose connection), Ø-inner 13mm, Ø-outer 19mm (air hose connection)
Compressed air connection 4-6 bar
Noise emission 70,4 dB (DIN EN ISO 9614-1)
Granulate size 2-8 +/- 20% mm
