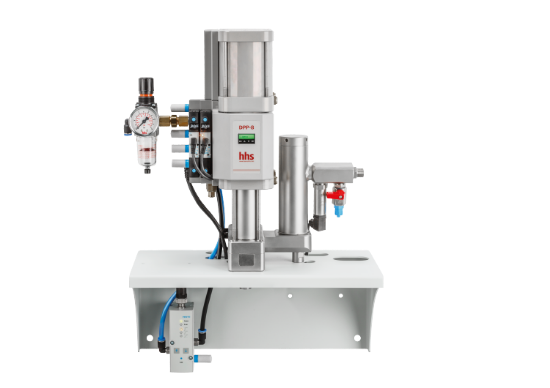

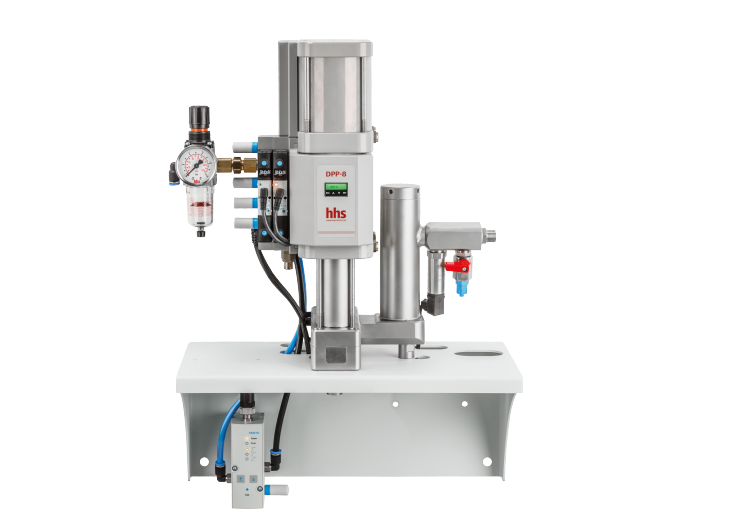

Picture of Xcold Cold glue pumps - DPP-8
Picture of Xcold Cold glue pumps - DPP-8
Picture of Xcold Cold glue pumps - DPP-8

Xcold Cold glue pumps - DPP-8

Double piston pump
Be the first to review this product
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Baumer hhs supplies you with tailored products for the application of cold glues and liquids.
Our products are used in folding carton production, corrugated board production, print finishing and many other applications. Baumer hhs is the partner of the internationally leading machine manufacturers and packaging producers.

DPP-8

Adhesive conveying in perfection. DPP-8 double piston pump
The precise electronic control of the two pistons enables the ideal pressure control of the adhesive at any production speed. A material pressure regulator is therefore not required and the adhesive is thus protected.

  • High-pressure pump for maximum production speeds
  • Networking with Xtend³ control unit
  • Intelligent communication
  • Error messages in the display
SKU: Xcold Cold glue pumps - DPP-8

Baumer hhs supplies you with tailored products for the application of cold glues and liquids.
Our products are used in folding carton production, corrugated board production, print finishing and many other applications. Baumer hhs is the partner of the internationally leading machine manufacturers and packaging producers.

DPP-8

Adhesive conveying in perfection. DPP-8 double piston pump
The precise electronic control of the two pistons enables the ideal pressure control of the adhesive at any production speed. A material pressure regulator is therefore not required and the adhesive is thus protected.

  • High-pressure pump for maximum production speeds
  • Networking with Xtend³ control unit
  • Intelligent communication
  • Error messages in the display

There is no further information

Products specifications
Attribute name Attribute value
Model Xcold DPP-8
Output pressure 40 bar (regulated max.)
Ιnlet pressure 6-7 bar
Pressure ratio 8:1
Viscosity 6.000 mPas
Delivery rate 2 L/min (max.)
Connected load 12 W
Weight 20,5 kg
