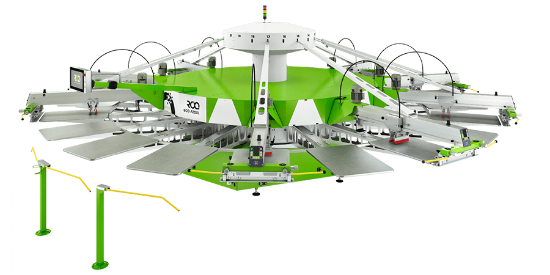

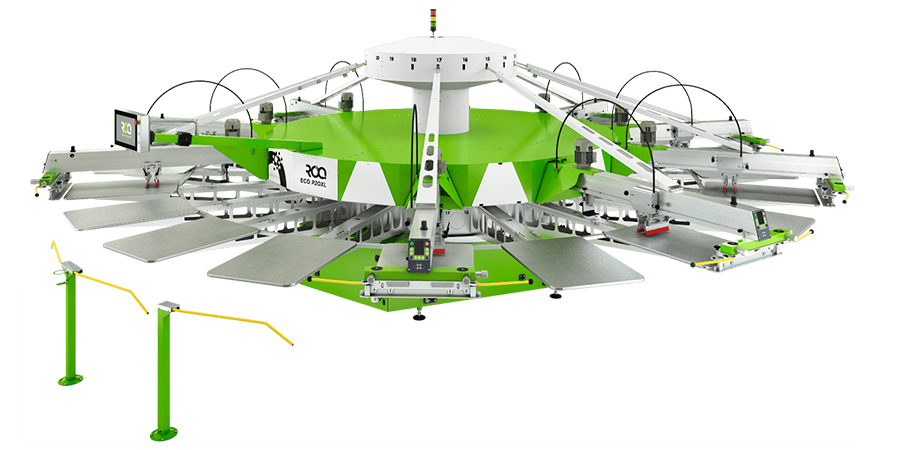

ROQ Eco P14

Be the first to review this product

$0.00

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

SKU: ROQ Eco P14

Products specifications

Attribute name	Attribute value
Model	Eco P14
Colors	12 (max.)
Pallets	14
Connectivity	6 (max. number of flash cure connection)
Power consumption	7 kVA
Compressed air consumption	7 l/min + consumption of each printhead (at 7 bar)
Speed	L size 1400 pieces/h (max.), 2XL size 1100 pieces/h (max.), 3XL size 1000 pieces/h (max.), XL size 1300 pieces/h (max.)
Dimensions (W x D x H)	L size 5400mm (diameter) x 2080mm (W) x 2440mm (H), 2XL size 7200mm (diameter) x 2350mm (W) x 2495mm (H), 3XL size 7600mm (diameter) x 2350mm (W) x 2490mm (H), XL size 6000mm (diameter) x 2080mm (W) x 2440mm (H)
Weight	2500 kg (L size), 4000 kg (2XL size), 4300 kg (3XL size), 2600 kg (XL size)

There is no further information
