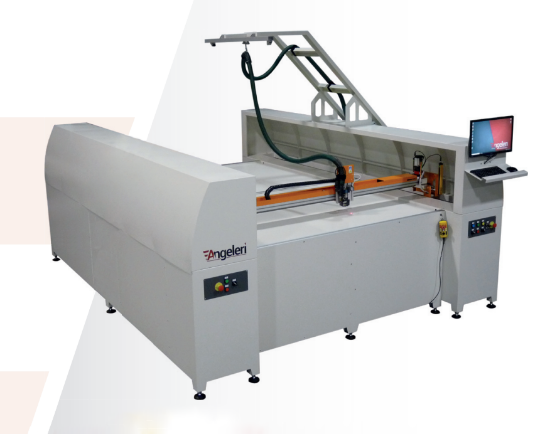

GP 2030

Intelligent automatic gluing plotter with integrated CAD-CAM system
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

GP 2030 automatic gluing plotter, ease and speed ay work.

We developed intelligent machines for automatic linear glue deposition, that will allow you to:

  • Significantly increase the productivity, compared to manual operation, thanks to working and rapid poditioning speed (100m/min).
  • Achieve superior and consistent quality in glue deposition, together with absolute repeatability and accuracy of trajectories.
  • Optimize the number of workers needed for gluing and assembly operations. While the machine deposes the adhesive, the worker can assembly in "hidden" time the part already glued.
  • Utilize the plotter also for small batch of production, thanks to the ease and speed of machine setting for a new operation.
  • Start production since day 1st, thanks to the ease, flexibility and speed of use of the proprietary CAD-CAM system installed on machine board, that allow an immediate utilization also to in experienced operators.
  • Count on a reliable Partner that assist you choosing the right application and configuration before the purchase and guarantee a fast and qualified after-sale technical service.

Glue deposition

The tool head can install up to 3 different nozzles, for the following type of glue deposition:

  • hot melt line
  • hot melt spray
  • vinylic line

Operator console

The CAD-CAM program is installed on a PC on machine board, positioned on an ergonomic adjustable support, for a comfortable management of the production process.

Worker safety

GP series plotter are equipped with double photoelectric safety barriers type 2, to guarantee the necessary protection during working operations.

Fix working plan and vertical feeding system

GP series plotter are configured in their standard version with a fix working plan, while one or two vertical feeding systems can be installed as an option, to load from the top layers of material to be glued (for over 600 mm in height), that automatically rise and position at the required working height at the end of each single operation.

GP Series plotter guarantee unmatched programming and machine setting flexibility, thanks to the proprietary CAD-CAM system installed on machine board.

  • It is possible to assign different colors to imported or generated gluing trajectories, according to the type of adhesive to be used for different segments (eg. red color for Hot Melt line nozzle, white color for Vinylic line nozzle, etc.).
  • Gluing paths can easily be modified at any time, directly on machine board.
  • The operator can add or delete segments or change the execution sequence, as well as define specific waiting times.

GP Series plotter can be configured to operate from 1 to 4 independent working stations, equipped with automatic parts counter and operator’s presence.

SKU: GP 2030

GP 2030 automatic gluing plotter, ease and speed ay work.

We developed intelligent machines for automatic linear glue deposition, that will allow you to:

  • Significantly increase the productivity, compared to manual operation, thanks to working and rapid poditioning speed (100m/min).
  • Achieve superior and consistent quality in glue deposition, together with absolute repeatability and accuracy of trajectories.
  • Optimize the number of workers needed for gluing and assembly operations. While the machine deposes the adhesive, the worker can assembly in "hidden" time the part already glued.
  • Utilize the plotter also for small batch of production, thanks to the ease and speed of machine setting for a new operation.
  • Start production since day 1st, thanks to the ease, flexibility and speed of use of the proprietary CAD-CAM system installed on machine board, that allow an immediate utilization also to in experienced operators.
  • Count on a reliable Partner that assist you choosing the right application and configuration before the purchase and guarantee a fast and qualified after-sale technical service.

Glue deposition

The tool head can install up to 3 different nozzles, for the following type of glue deposition:

  • hot melt line
  • hot melt spray
  • vinylic line

Operator console

The CAD-CAM program is installed on a PC on machine board, positioned on an ergonomic adjustable support, for a comfortable management of the production process.

Worker safety

GP series plotter are equipped with double photoelectric safety barriers type 2, to guarantee the necessary protection during working operations.

Fix working plan and vertical feeding system

GP series plotter are configured in their standard version with a fix working plan, while one or two vertical feeding systems can be installed as an option, to load from the top layers of material to be glued (for over 600 mm in height), that automatically rise and position at the required working height at the end of each single operation.

GP Series plotter guarantee unmatched programming and machine setting flexibility, thanks to the proprietary CAD-CAM system installed on machine board.

  • It is possible to assign different colors to imported or generated gluing trajectories, according to the type of adhesive to be used for different segments (eg. red color for Hot Melt line nozzle, white color for Vinylic line nozzle, etc.).
  • Gluing paths can easily be modified at any time, directly on machine board.
  • The operator can add or delete segments or change the execution sequence, as well as define specific waiting times.

GP Series plotter can be configured to operate from 1 to 4 independent working stations, equipped with automatic parts counter and operator’s presence.

There is no further information

Products specifications
Attribute name Attribute value
Working surface 2000x3000mm
Dimensions (W x D x H) 3000x3700x1550mm
Speed 1-1700 mm/sec
