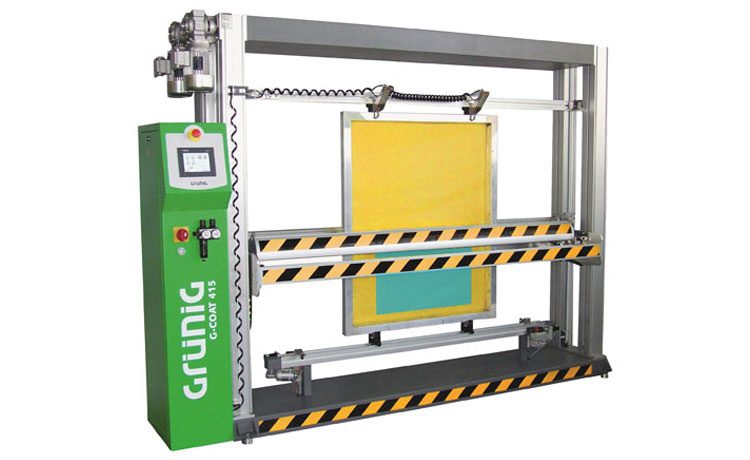

G-Coat 415

Automatic Coating Machine

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Quick facts

For maximum screen format 3000 x 5000 mm/ 118 x 196 inch
Professional automatic coating for any kind of application
Length measuring system for automatic screen detection
Highest possible precision, coating tolerance +/- 1 micron
Touch-Screen Terminal, user guide interface in several languages
Various versions available:
- Front loading
- Side loading
- Raised bottom console for ergonomic working with small screens
- In-line capable and expandable with magazine technology
Expandable with various options:
- Coating trough cleaning
- Coating trough refilling
- Programmable coating trough pressure
- Multiple screen reception unit
- Capillary film
- Hot air dryer
Patented coating trough G-COAT 401 included

SKU: G-Coat 415

Quick facts

For maximum screen format 3000 x 5000 mm/ 118 x 196 inch
Professional automatic coating for any kind of application
Length measuring system for automatic screen detection
Highest possible precision, coating tolerance +/- 1 micron
Touch-Screen Terminal, user guide interface in several languages
Various versions available:
- Front loading
- Side loading
- Raised bottom console for ergonomic working with small screens
- In-line capable and expandable with magazine technology
Expandable with various options:
- Coating trough cleaning
- Coating trough refilling
- Programmable coating trough pressure
- Multiple screen reception unit
- Capillary film
- Hot air dryer
Patented coating trough G-COAT 401 included

There is no further information

Products specifications

Attribute name	Attribute value
Model	G-Coat 415
Screen format	SB Screen width mm 1000-3000 / SH Screen height mm 1250-5000 / Frame profile height mm 30-195
Dimensions (W x D x H)	Width mm SB + 1200 / Depth mm 630 / Height mm SH + 800
Power requirements	Voltage 3 x 400V+N+PE / 3 x 220V PE / Frequency Hz 50/60
