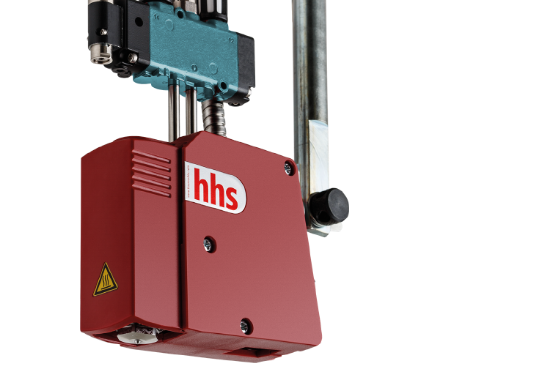

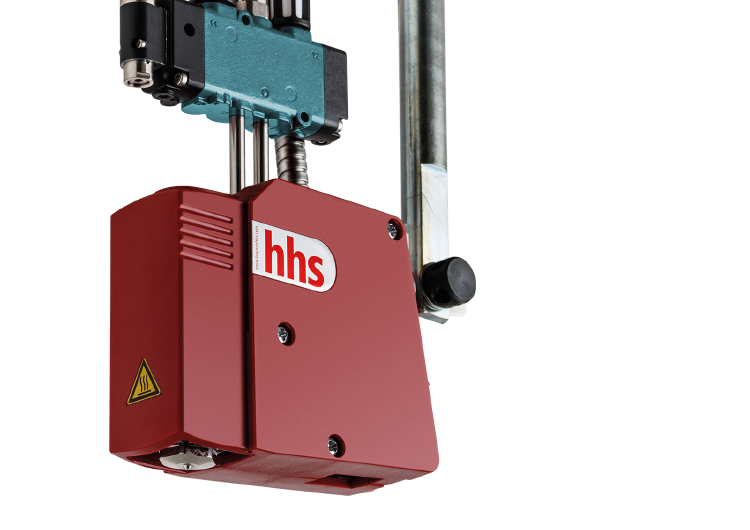

Xmelt Electropneumatic application head - Aerto Evo

Xmelt Electropneumatic application head - Aerto Evo
Be the first to review this product
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

Aerto Evo

Powerhouse for end-of-line packaging. With the aerto evo, soiling of packaging machines due to thread pull and faulty gluing is history. The powerful head ensures clean application of dots and beads even in the most difficult installation situations. Safe and precise.

  • Maximum safety with temperature cut-off
  • Maximum flexibility in adhesive selection
  • Simple control via SPS 24V
  • Flexible for dot and line application
SKU: Xmelt Electropneumatic application head - Aerto Evo

Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

Aerto Evo

Powerhouse for end-of-line packaging. With the aerto evo, soiling of packaging machines due to thread pull and faulty gluing is history. The powerful head ensures clean application of dots and beads even in the most difficult installation situations. Safe and precise.

  • Maximum safety with temperature cut-off
  • Maximum flexibility in adhesive selection
  • Simple control via SPS 24V
  • Flexible for dot and line application

There is no further information

Products specifications
Attribute name Attribute value
Model Xmelt Aerto Evo
Temperature range 0 - 200 °C
Temperature sensor PT 120
Switching frequency 250 Hz (depending on nozzle size, adhesive and pressure)
Connection 15 pole plug
Hose connections 1/2” UNF
Material pressure 80 bar (adhesive pressure)
Viscosity 60.000 mPas (max.)
Noise emission 82 dB (with sound insulation)
