Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

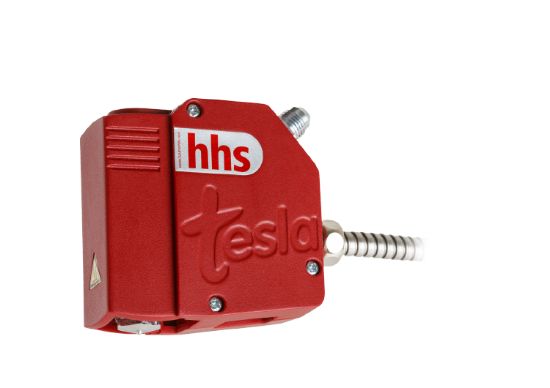

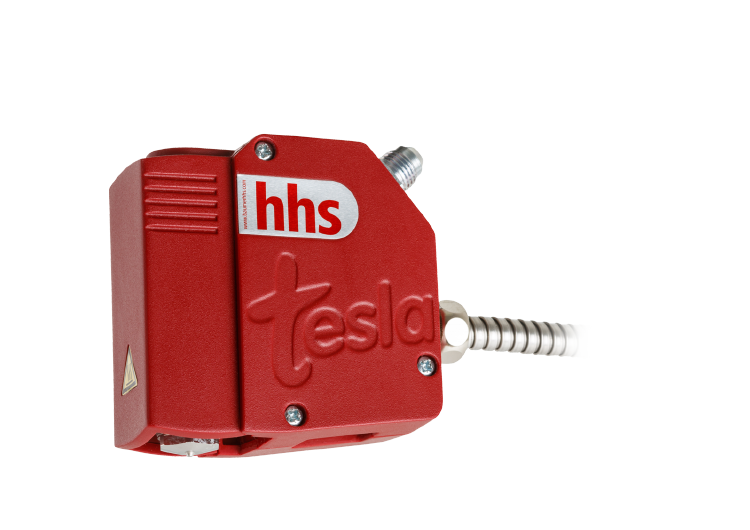

Tesla Evo

The innovative hot melt head controled via PLC 24V. The tesla evo provides the packaging industry with a powerful electromagnetic application head that can be controlled directly via the machine controller. The immense advantages of electromagnetic valves can now also be used in end-of-line packaging. This reduces production costs through adhesive savings and maximum availability of the packaging machines.

  • Maximum availability with over 1 billion switching operations
  • Simple control via SPS 24V
  • Maximum safety due to integrated overtemperature switch
  • Maximum flexibility up to 5,000 mPa.s



SKU: Xmelt Electromagnetic application head - Tesla Evo

Baumer hhs offers everything for the application and processing of hot melt adhesives. The systems and components are used in many industrial applications. From energy-efficient melters to long-life electrical application heads, Baumer hhs is your one-stop partner.

Tesla Evo

The innovative hot melt head controled via PLC 24V. The tesla evo provides the packaging industry with a powerful electromagnetic application head that can be controlled directly via the machine controller. The immense advantages of electromagnetic valves can now also be used in end-of-line packaging. This reduces production costs through adhesive savings and maximum availability of the packaging machines.

  • Maximum availability with over 1 billion switching operations
  • Simple control via SPS 24V
  • Maximum safety due to integrated overtemperature switch
  • Maximum flexibility up to 5,000 mPa.s



There is no further information

Products specifications
Attribute name Attribute value
Model Xmelt Tesla Evo
Temperature range 0 - 200 °C
Temperature sensor PT 100
Switching frequency 135 Hz
Connection 15 pole plug
Hose connections 1/2” UNF
Material pressure 80 bar (adhesive pressure)
Viscosity 5.000 mPas (max.)
Noise emission 65 dB
