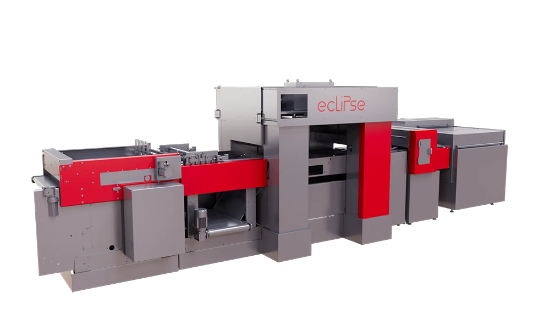

Picture of Eclipse series
Picture of Eclipse series
Picture of Eclipse series
Picture of Eclipse series
Picture of Eclipse series

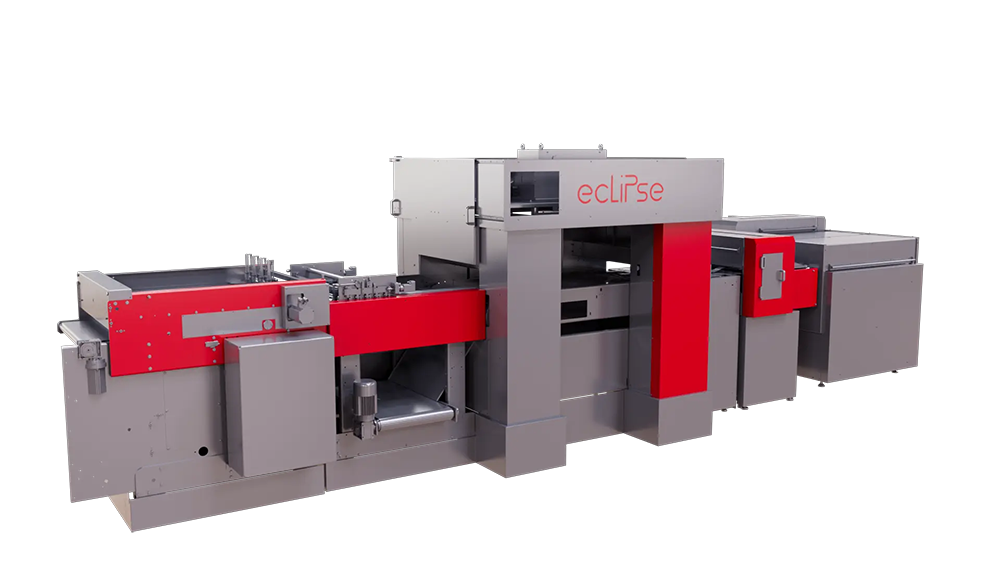

Eclipse series

Digital die-cutting machines, automatic reticular creasing and laser cutting, modular in B1, B2, B3 formats
Be the first to review this product
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Digital die-cutting machines, automatic reticular creasing and laser cutting, modular in B3, B2, B1 sizes.

Eclipse series automates the die-cutting process by integrating mechanical creasing into the continuous production flow, which is completed by laser cutting (or plotter stations).

Equipped with a pallet feeder with barcode recognition system, which starts the continuous and non-stop programming of the entire subsequent working process.

Reasons to choose Petratto Eclipse:

  1. To automate the die-cutting process and make it dynamic, fluid, flexible and smart without any stops among different jobs.
  2. The new working model eliminates the number of processing steps and costs, making micro-runs (1 sheet), medium-runs and, in some cases, even large runs, profitable.
  3. Limitless possibility of graphic solutions that allow offering new, unique and high quality products with a wide choice of materials and thicknesses.
  4. Maximum flexibility. Quickly adapts to different orders and fast turnaround times.
  5. Able to handle requests ranging from sampling to quantity production with the same machine.
  6. Reduction in processing steps and costs (dies, settings, etc.). Machine and process management do not require paper converting skills or qualified personnel.
  7. Four standard models available and possibility of tailor-made configurations.
SKU: Petratto Eclipse

Digital die-cutting machines, automatic reticular creasing and laser cutting, modular in B3, B2, B1 sizes.

Eclipse series automates the die-cutting process by integrating mechanical creasing into the continuous production flow, which is completed by laser cutting (or plotter stations).

Equipped with a pallet feeder with barcode recognition system, which starts the continuous and non-stop programming of the entire subsequent working process.

Reasons to choose Petratto Eclipse:

  1. To automate the die-cutting process and make it dynamic, fluid, flexible and smart without any stops among different jobs.
  2. The new working model eliminates the number of processing steps and costs, making micro-runs (1 sheet), medium-runs and, in some cases, even large runs, profitable.
  3. Limitless possibility of graphic solutions that allow offering new, unique and high quality products with a wide choice of materials and thicknesses.
  4. Maximum flexibility. Quickly adapts to different orders and fast turnaround times.
  5. Able to handle requests ranging from sampling to quantity production with the same machine.
  6. Reduction in processing steps and costs (dies, settings, etc.). Machine and process management do not require paper converting skills or qualified personnel.
  7. Four standard models available and possibility of tailor-made configurations.

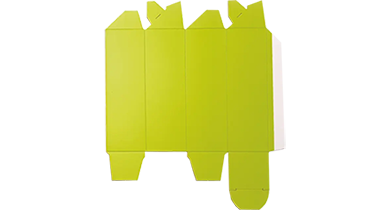

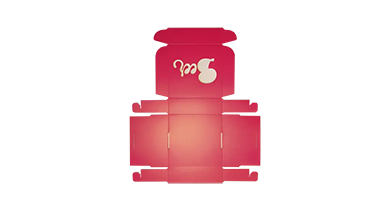

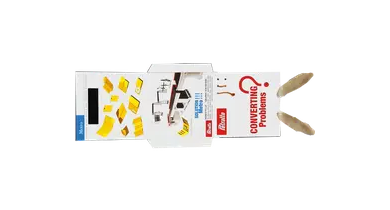

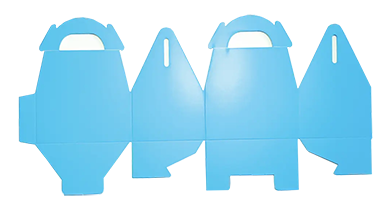

  • implementation 3
  • implementation 3

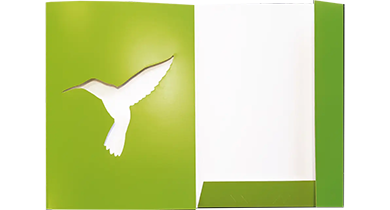

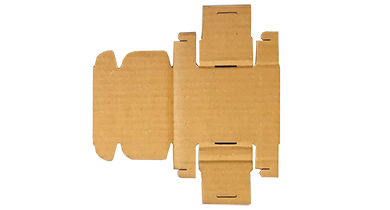

  • implementation 6
  • implementation 3
  • implementation 3
  • implementation 6
Picture of Eclipse B1
Eclipse B1
Digital die-cutting machine, automatic reticular creasing and laser cutting in B1 format
SKU: Petratto Eclipse B1
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Picture of Eclipse B2 PLUS
Eclipse B2 PLUS
Fast die-cutting, automatic reticular creasing and laser cutting in B2 format
SKU: Petratto Eclipse B2 PLUS
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Picture of Eclipse B2
Eclipse B2
Digital die-cutting machine, automatic reticular creasing and laser cutting in B2 format
SKU: Petratto Eclipse B2
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Picture of Eclipse B3
Eclipse B3
Digital die-cutting machine, automatic reticular creasing and laser cutting in B3 format
SKU: Petratto Eclipse B3
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Models Eclipse B3 | Eclipse B2 | Eclipse B2 plus | Eclipse B1
Sheet format Up to 353 x 500mm (Eclipse B3) / up to 500 x 707mm (Eclipse B2 / B2 Plus) / up to 707 x 1000mm (Eclipse B1)
Media thickness 0.11 mm - 0.6 mm (Eclipse B3, Eclipse B2) / N-F+g up to 1.2 mm (Eclipse B2 Plus, Eclipse B1)
Speed Eclipse B3: up to 1000 sheets/hour | Eclipse B2: up to 1500 sheets/hour | Eclipse B2 plus: up to 3000 sheets/hour | Eclipse B1: up to 2000 sheets/hour
Processes supported Laser cutting for commercial applications / Mechanical creasing + laser cutting (leaflets, greeting cards) / Cross mechanical creasing + laser cutting (calendars, boxes, cartons)
Feeder Eclipse B3, Eclipse B2, Eclipse B2 Plus: Pile sheet feeder with register, pallet sheet feeder with barcode recognition system / Eclipse B1: Pallet sheet feeder with barcode recognition system
Creasing 1 up to 4 crease position cameras. Self-programmable parallel creases. Self-programmable cross creases (continuous). Automatic rotation + cross creasing in 2 steps
Laser cutting 2 self-registration laser cameras. Suction sheet transport with calibrated steel cables. Laser type: CO₂ with Galvanic mirror. Registration by print marks or sheet edges. Simplified maintenance, with constant power output and NEP Technology (sealed source laser).
Laser power (Watt) 350 – 550 – 750 – 1100
Blanking & stripping Frame removal, blanking/stripping
Media output Shingle/batch stacking. Pile stacking. Separate individual shape delivery (optional on Eclipse B2 Plus)
Software Supported file types: PDF, EPS, PLT, DWG, DXF. Integrated CAD software. Auto notch positioning and modification. Automatic cut path optimization (compensating for material shrinkage). Pen association (speed & power). Job list management. Remote control capability (networked). Production monitoring and downtime reduction with external management software (optional)
